THERMIC Energeto® Alu 8000

LOW WEIGHT BUT GREAT CAPACITY. energeto®

Satler energeto®PVC windows are perfectly suited for passive houses and passively constructed buildings.



TECHNICAL PROPERTIES/STANDARD:

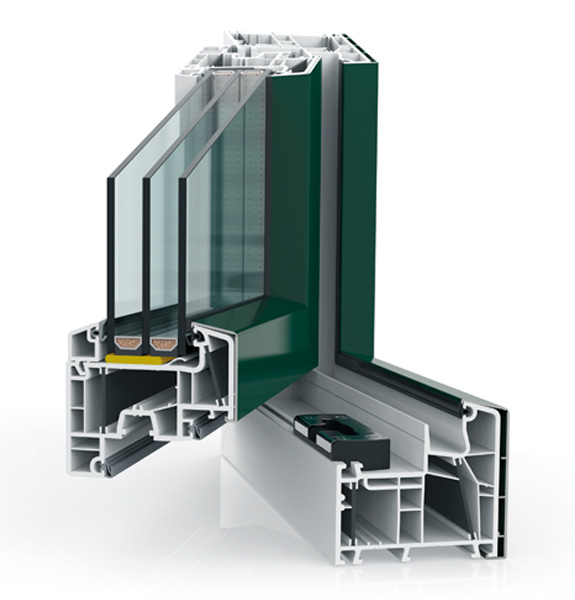

Profile:  flat line, installation depth; 90 mm,
ALU cover profile installed on the exterior of the casement and frame
Thermal transmittance of the profile: Uf = 0.94 W/m2 K
Profile reinforcement: Ultradur High Speed
Seals:  three permanently-elastic grey or black seals (on the exterior of the window black only)
Colour:  white, exterior: powder coated aluminium cover profile according to the RAL colour chart
Hardware:  activPilot with multipoint safety locking system and basic burglar resistance with two safety locking elements, level guard (that prevents the window handle from rotating to the wrong position) and a casement-unloading lifting device.
Glass:  triple-glazing, 4 - 14 Ar - 4 - 14 Ar 4 (4 mm pane of glass, 14 mm cavity, 4 mm pane of glass, 14 mm cavity, 4 mm pane of glass), laminated in the casement (thus improving the thermal transmittance of the sash by up to 20% and the safety and stability of the window), with a thermal PVC spacer, Ug = 0.6 W/m2 K
Total thermal transmittance of the window:  Uw = 0.81 W/m2 K
Weighted sound reduction index of the window:  Rw = 33 dB

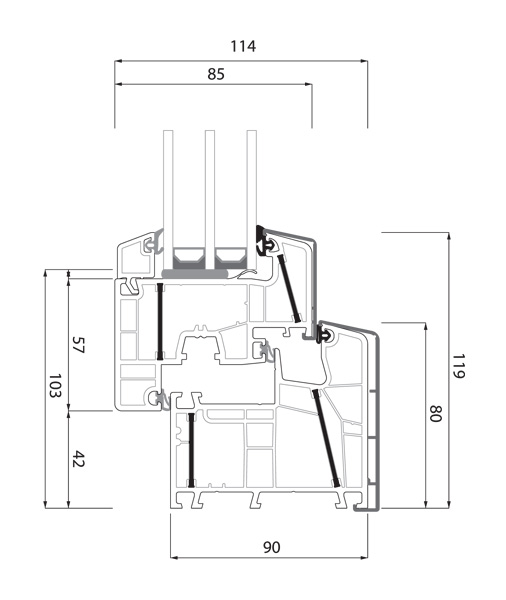

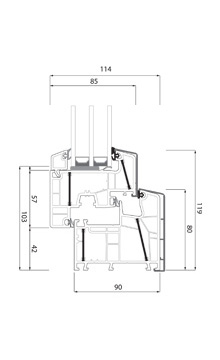

Frame depth:  90 mm
Total window depth:  114 mm

ADDITIONAL/ABOVE-STANDARD OPTIONS:

Colour:  interior: colour finish, exterior: powder coated aluminium cover profile according to the RAL colour chart
Closed window ventilation system:  REGEL – Air or Basic Air Plus
Hardware:
  • multi-stepped gap ventilation,
  • RC1 N and RC2 N resistance class hardware,
  • highly energy efficient micro-ventilation of the room with parallel action hardware – activPilot Comfort,
  • concealed hardware – activPilot Select
Glass:
  • triplee-glazing, Ug = 0.5 W/m2 K = Uw = 0.70 W/m2 K,
  • soundproof glass,
  • safety glass.
Total glass depth:  max. 51 mm
Optional sliding windows
Optimum Uw value = 0.68 W/m2 K

COLOUR CHART - PVC

05.
Mahogany		 23.
Golden Oak
27.
Hazelnut		 79.
alux DB 703		 55.
Mountain Pine
55.
Pine Mountain
 60.
Anthracite Grey
 61.
Grey		 62.
Basalt Grey		 30.
Dark Green 		06.
Bog Oak

Only the basic colours of the colour chart are listed above. For further enquiries, please contact the manufacturer.
