THERMIC

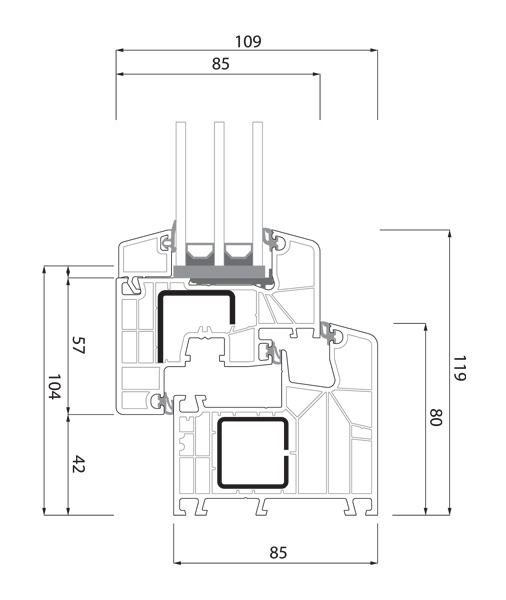

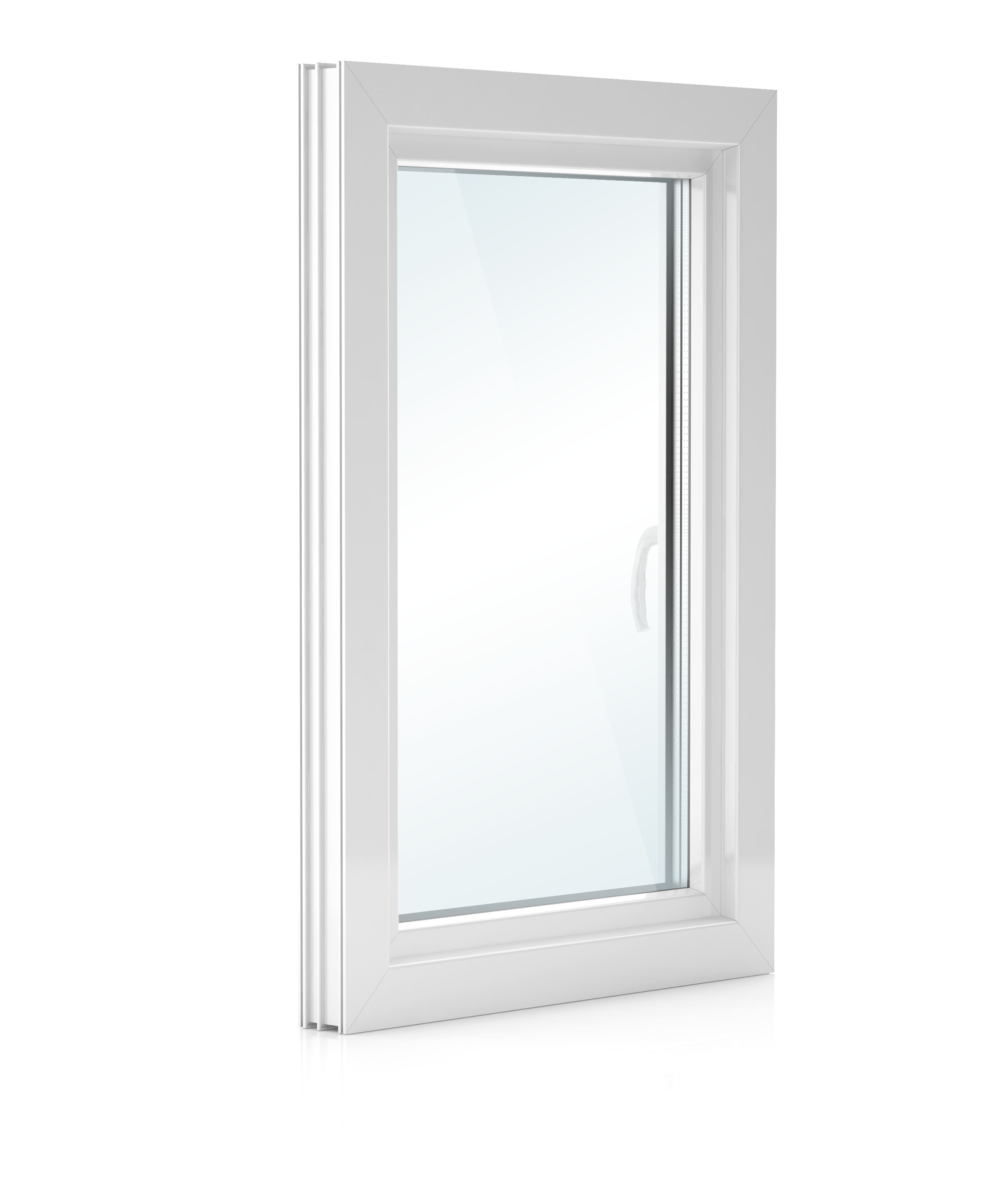

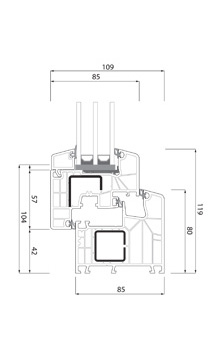

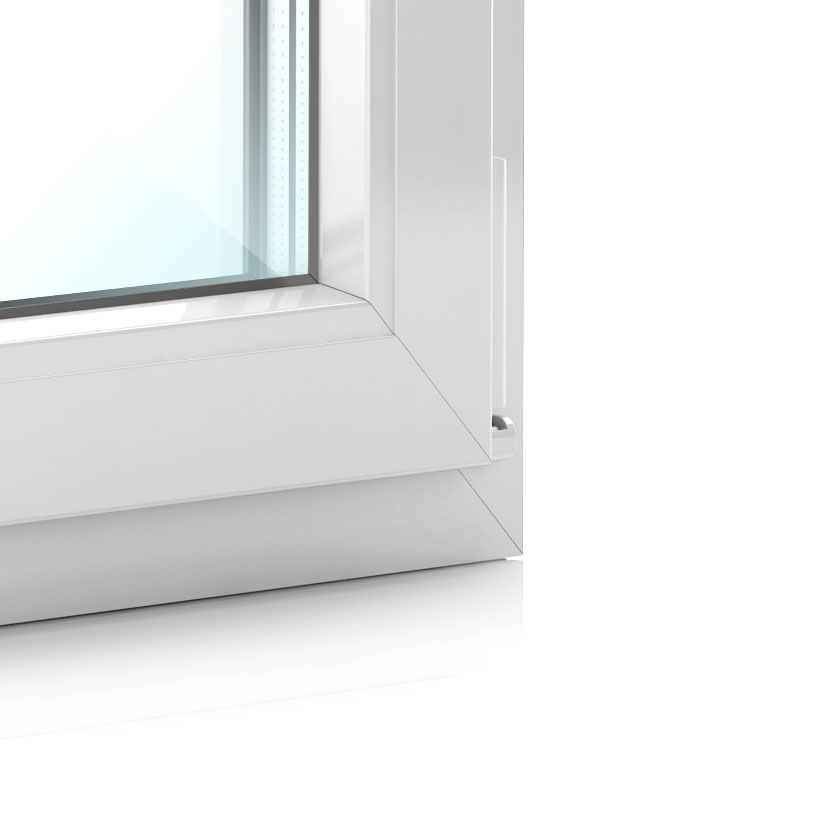

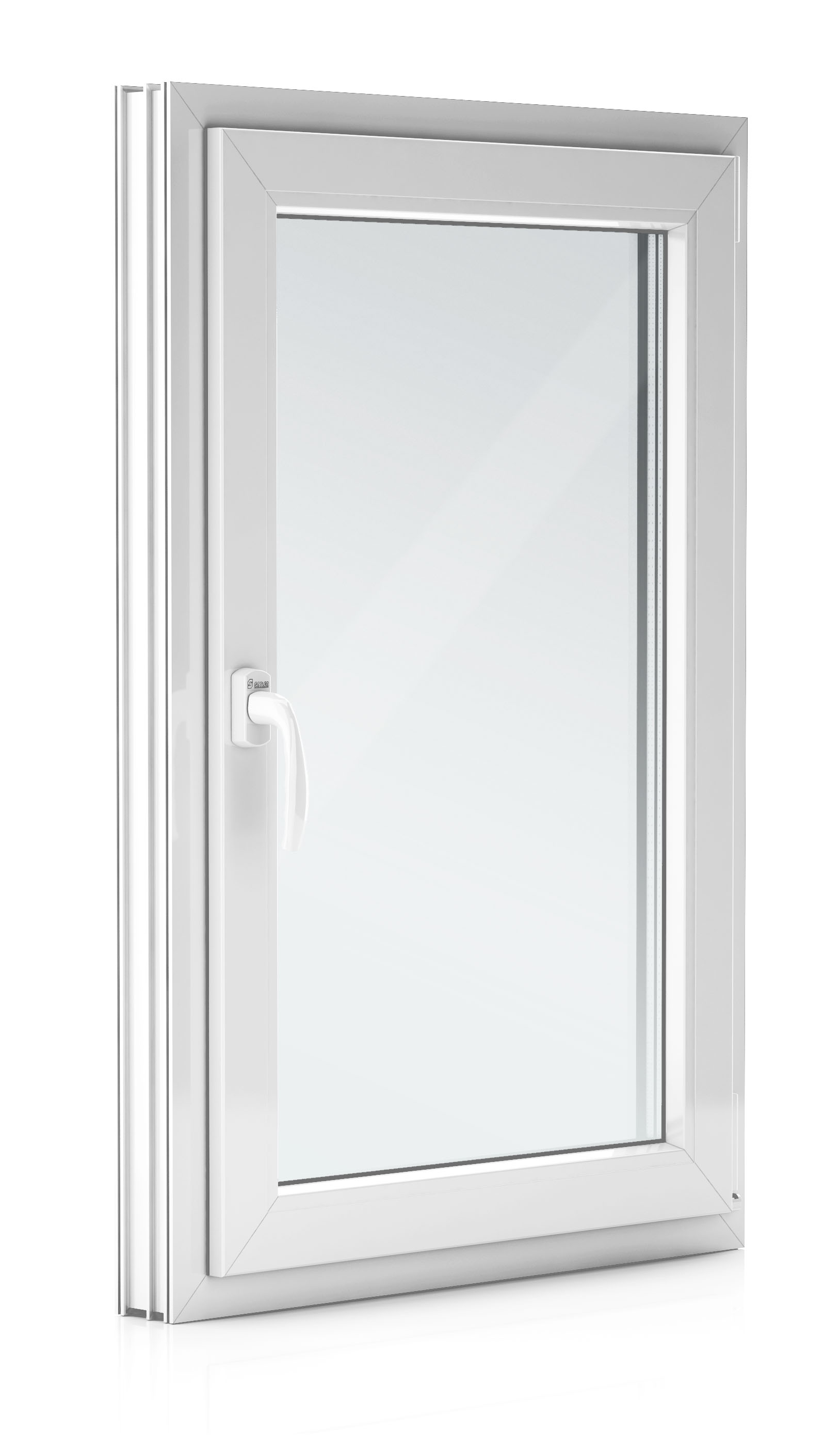

Videz znotraj Videz zunaj Detajl

TECHNICAL PROPERTIES/STANDARD:

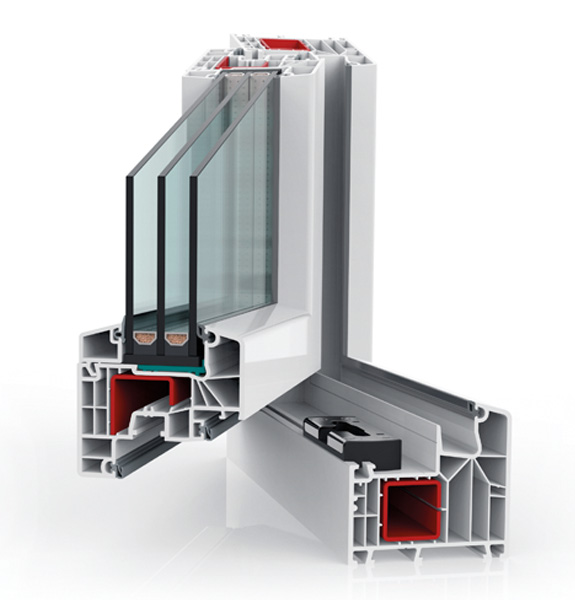

Profile:  flat line, installation depth: 85 mm
Thermal transmittance of the profile: Uf = 1.0 W/m2 K
Profile reinforcement: steel – galvanised
Seals: three permanently-elastic grey or black seals
Colour:  white
Hardware:  activPilot with multipoint safety locking system and basic burglar resistance with two safety locking elements, level guard (that prevents the window handle from rotating to the wrong position) and a casement-unloading lifting device.
Glass:  triple-glazing, 4 - 12 Ar -4 - 12 Ar -4 (4 mm pane of glass, 12 mm cavity, 4 mm pane of glass, 12 mm cavity, 4 mm pane of glass) with thermal PVC spacer, Ug = 0.7 W/m2 K
Total thermal transmittance of the window:  Uw = 0.90 W/m2 K
Weighted sound reduction index of the window:  Rw = 33 dB
Frame depth:  85 mm
Total window depth:  109 mm

ADDITIONAL/ABOVE-STANDARD OPTIONS:

Colour:

colour finish (on one or both sides)

Closed window ventilation system:

REGEL – Air or Basic Air Plus

Hardware:

  • multi-stepped gap ventilation,
  • RC1 N and RC2 N resistance class hardware,
  • highly energy efficient micro-ventilation of the room with parallel action hardware – activPilot Comfort,
  • concealed hardware – activPilot Select

Glass:

  • triple-glazing, Ug = 0.6 W/m2 K with a thermal PVC spacer = Uw = 0.83 W/m2 K,
  • Ug = 0.5 W/m2 K with a thermal PVC spacer =Uw = 0.70 W/m2 K,
  • soundproof glass,
  • safety glass.

Total glass depth:

max. 51 mm

Optional sliding windows

Optimum Uw value = 0.76 W/m2 K


COLOUR CHART - PVC

05.
Mahogany		 23.
Golden Oak
27.
Hazelnut		 79.
alux DB 703		 55.
Mountain Pine
55.
Pine Mountain
 60.
Anthracite Grey
 61.
Grey		 62.
Basalt Grey		 30.
Dark Green 		06.
Bog Oak

Only the basic colours of the colour chart are listed above. For further enquiries, please contact the manufacturer.
